Sampre 1

A single-head, mechanical FFS machine for efficient packaging of viscous products in side-seal format.

Sampre 1

A single-head, mechanical FFS machine for efficient packaging of viscous products in side-seal format.

Sampre 01 is a cutting-edge viscous liquid form fill seal machine manufactured with a single head.

Equipped with durable steel and advanced technology, it’s best used for high-speed and hygienic packaging of various liquid products.

Product Application

  • Impulse or Continuous Sealing System.
  • Date & Batch Coding Systems: Printer.
  • Eye Mark Sensor: Accurate Printed Pouch Alignment for various squats.
Execution Type Standard Execution
Filling Range 200 ml to 1000 ml
Type Of Pouch Side Seal / Center Seal
Max. Output 800 Packs/hr
Feeding System Positive Displacement Pump
Pouch Width 162 mm
Input Power 3-Phase 415 V 50 Hz.
Power Consumption 1.2 Kw/hr.
Cooling Water 100 L/hr @ 2 kg/cm2 pressure; 5-7°C or Cooling water is not required in the continuous sealing option.
Film Roll Details 20-25 Kg Roll; Core Ø 76 mm
Machine Dimensions (H x D x W) 2135mm X 710mm X 970mm

  • Enhanced latest continuous sealing technology with no water and no sealing elements.
  • Mechanical components for motion control.
  • Consistent speed, accuracy and durability with minimal electronic components.
  • Mechanical gear link operation for high reliability.
  • Precision liquid filling.
  • Precise, incremental movement for controlled film advancement & Ideal for intermittent motion FFS machines by stepper motor.
  • Efficient pouch forming and sealing.
  • Hygienic machine construction as per FDA.
  • Easy to operate.
  • Customisation and scalability.

Packaging, Perfected.

Uncover a complete range of machines built to package with accuracy, speed, and care.

View Product Range

Explore The Series

Default
Sampre 2

A single-head Liquid FFS machine built for hygienic, efficient, and reliable pouch packaging of liquids from 200ml to 1000ml.

View Product
Default
Sampre 7K

A twin-head Liquid FFS machine designed for safe, smooth, and consistent pouch packaging of liquids (200ml–1000ml), ensuring stable, high-performance operation.

View Product
https://samarpanindia.com/wp-content/uploads/2024/07/sampre8.png

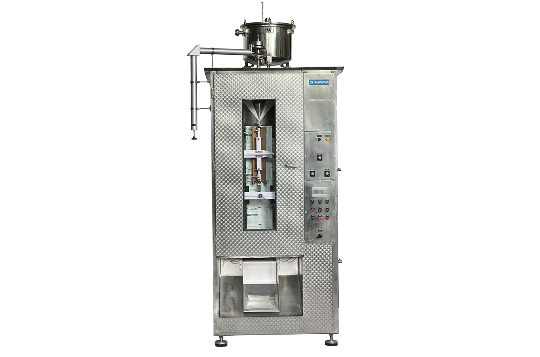

Sampre 8
