Prism 125

A single-head, servo-based FFS machine for reliable packaging of viscous products using side-seal packs.

Prism 125

A single-head, servo-based FFS machine for reliable packaging of viscous products using side-seal packs.

Prism 125 is a next-level servo-powered packaging solution for oil. With twin filling heads and innovative control systems, it delivers seamless operations.

Designed for high-volume output, it features exceptional speed and large-scale packaging efficiency, making it the most sophisticated choice for streamlined oil packaging.

Product Application

  • Impulse or Continuous Sealing System.
  • Date & Batch Coding Systems: Printer.
  • Eye Mark Sensor: Accurate Printed Pouch Alignment for various squats.
Execution Type Standard Execution
Filling Range 500 ml- 1000 ml
Type Of Pouch Side Seal
Max. Output 7440 Packs/hr
Feeding System Positive displacement pump
Max. Pouch Width 162 mm
Input Power 3-Phase 415 V 50 Hz.
Power Consumption 7.5 Kw/hr.
Cooling Water 750 L/hr @ 2 kg/cm2pressure; 5-7°C or cooling water not required in continuous sealing option
Film Roll Details 20 Kg ; Core Ø 76 mm
Machine Dimensions (H x D x W) 2695mm x 1080mm x 900mm
Machine Weight in Kgs. Approx. 1250 kg

  • 2X faster – Dual-head design increases production capacity.
  • Leak-proof seals ensured by latest technology sealing.
  • Minimal downtime assured with its self-diagnostics and quick changeover capabilities.
  • Servo motors reduce power consumption.
  • Equipped with future-ready technology.
  • Industry 4.0 integration.
  • Continuous oil feeding through pump for better speed.
  • An audiovisual signal is provided for the end of the film and product.
  • Compact panel with a touchscreen display in the machine’s centre – swivelling type.
  • Delivers precise film pulling, filling, and sealing, reducing errors and material wastage.
  • Ensures precise volume control, reducing product wastage.
  • Mechanical gear linkage operation for high reliability.
  • High-speed and efficient productivity.
  • Hygienic machine construction.
  • Easy to operate.
  • Customisation and scalability.
  • Quick parameter adjustments via PLC/HMI touchscreen.
  • User-friendly electric panel.

Packaging, Perfected.

Uncover a complete range of machines built to package with accuracy, speed, and care.

View Product Range

Explore The Series

https://samarpanindia.com/wp-content/uploads/2024/07/prism10k.png
Prism 10K

A twin-head servo-based liquid FFS machine designed for pouch filling from 200 ml to 1000 ml.

View Product
https://samarpanindia.com/wp-content/uploads/2024/07/prism15k.png
Prism 15K

A high-speed twin-head Liquid FFS machine with servo control, ensuring smooth liquid filling (200ml–1000ml) and optimised production flow.

View Product
https://samarpanindia.com/wp-content/uploads/2024/07/prism40.png
Prism 40

A single-head, servo-based FFS machine designed to pack viscous products in side-seal packs from 200ml to 1 litre in side seal packs

View Product
Default
Prism 50

A single-head, servo-based FFS machine designed to pack viscous products in side-seal packs from 200ml to 1 litre in side seal packs

View Product
Default
Prism 5K

A servo-based single-head Liquid FFS machine for packaging of liquids from 2 L to 6 L.

View Product
https://samarpanindia.com/wp-content/uploads/2024/07/prism9.1.png
Prism 9.1

A twin-head, servo-based FFS machine designed to pack viscous products in side-seal packs from 200ml to 1 litre in side seal packs

View Product
https://samarpanindia.com/wp-content/uploads/2024/07/prime96.png

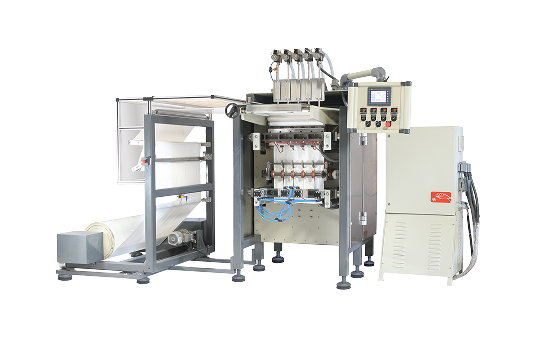

Prime 96
